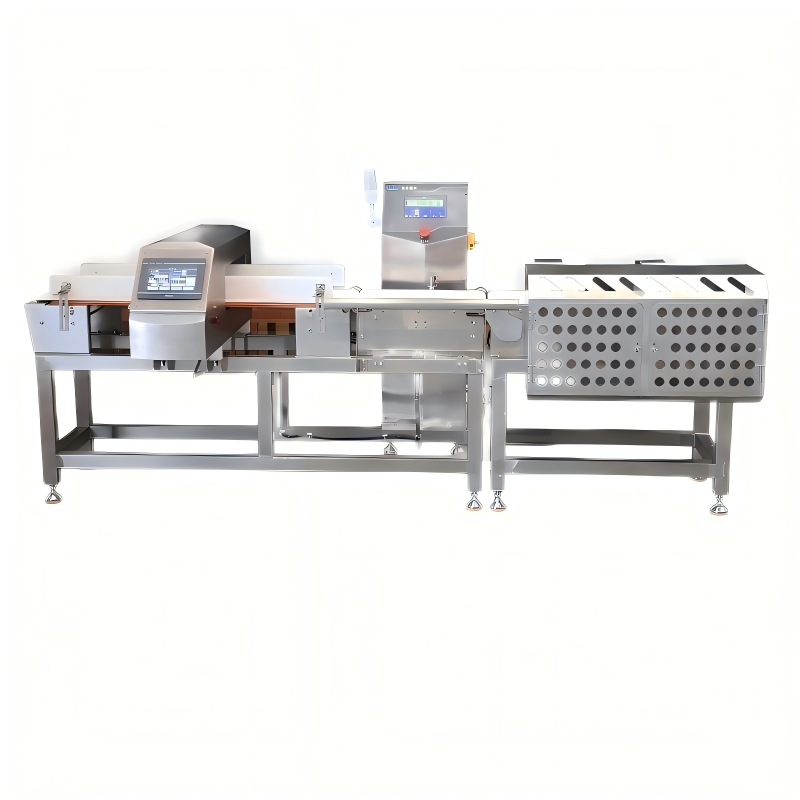

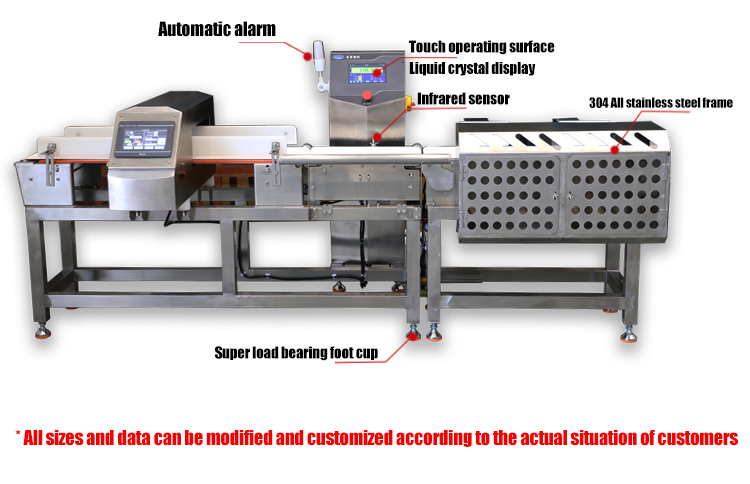

Beiheng Production Line Conveyor Weight Measuring Equipment with Metal Detector Integrated Metal Detector Checkweigher

The Integrated Metal Detector and Weigher combines the functions of a metal detector and a weigher. When an object containing metal passes through the metal detector, an alarm prompt is issued; at the same time, the automatic weighing equipment weighs the product to determine whether the net content of the product meets the standard. If unqualified products are found, the equipment will automatically reject or alarm to ensure the quality and safety of products. It realizes the fast and accurate detection of metal contamination and weight abnormality in products through the comprehensive application of electromagnetic induction and weight sensing technology.

    Video

    Main Categories Of Substances That Can Be Detected

    1. Metal impurities

    In the production, processing and packaging process of the product may be mixed with

    Including but not limited to: ferrous metals, such as iron nails, iron sheets, etc.; non-ferrous metals, such as copper, aluminum, stainless steel and other non-ferrous metals.

    2. Product weight

    It will automatically weigh the product and compare it with the preset standard weight to determine whether there is any weight abnormality in the product. This function is especially important in pharmaceutical, food and other industries to ensure that the filling amount of each product is accurate to avoid underweight or overweight.

    3. Product accessories and packaging integrity

    It also has the function of detecting whether the attached parts of the product are missing or omitted, or whether the product packaging is complete. This helps to ensure the integrity and quality of the product and enhance consumer satisfaction.

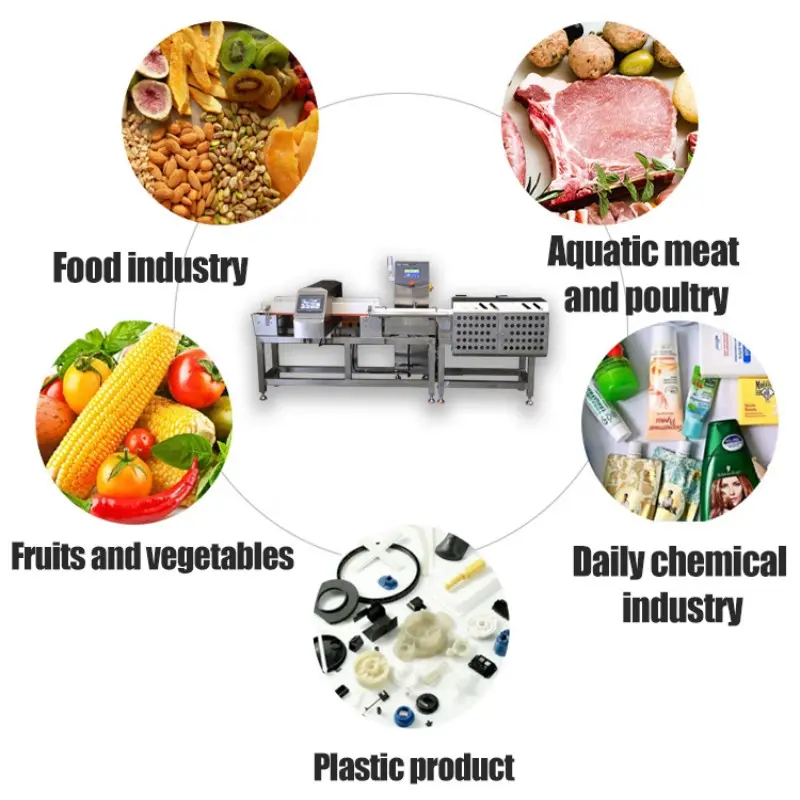

    4. Scope of Application

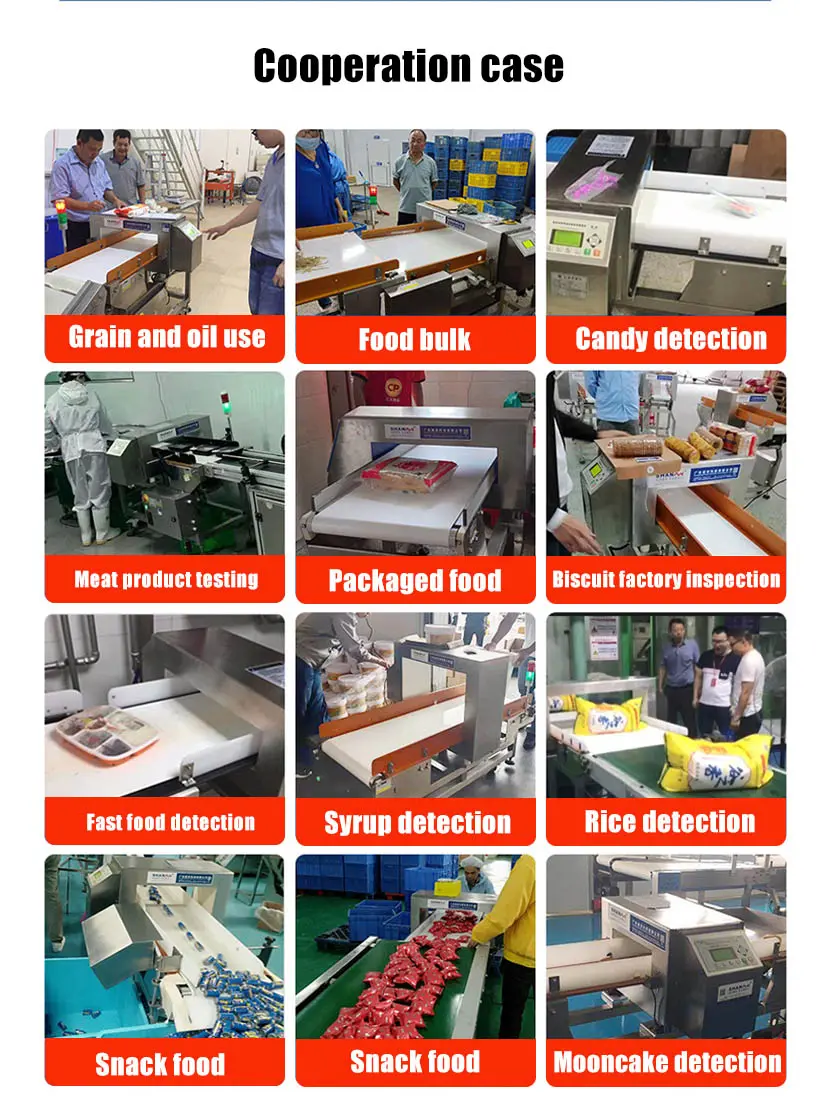

    It is widely used in a variety of industries, such as pharmaceutical, food, chemical and so on. In the pharmaceutical industry, it can be used to detect metal impurities and weight anomalies in the packaging of medicine bottles and capsules; in the food industry, it can be used to detect metal contaminants in food products and whether the net content is up to standard; in the chemical industry, it can be used to detect metal impurities in chemical raw materials and products, etc.


    • Main Categories Of Substances That Can Be Detected-ae

      Main Categories Of Substances That Can Be Detected-ae

    • Main Categories Of Substances That Can Be Detected-vd

      Main Categories Of Substances That Can Be Detected-vd

    • Main Categories Of Substances That Can Be Detected-bv

      Main Categories Of Substances That Can Be Detected-bv

    Product Paramenters

    Product Name Metal Detector and Checkweigher
    Model BH4030
    Body Material 304 Stainless Steel
    Dimension 2024mm(L)*920mm(W)*1010mm(H)
    Power Supply AC220V±10% 50/60HZ
    Conveyor Belt Dimension 400mm(L)*300mm(W)
    Weighing Material Dimension 350mm(L)*210mm(W)

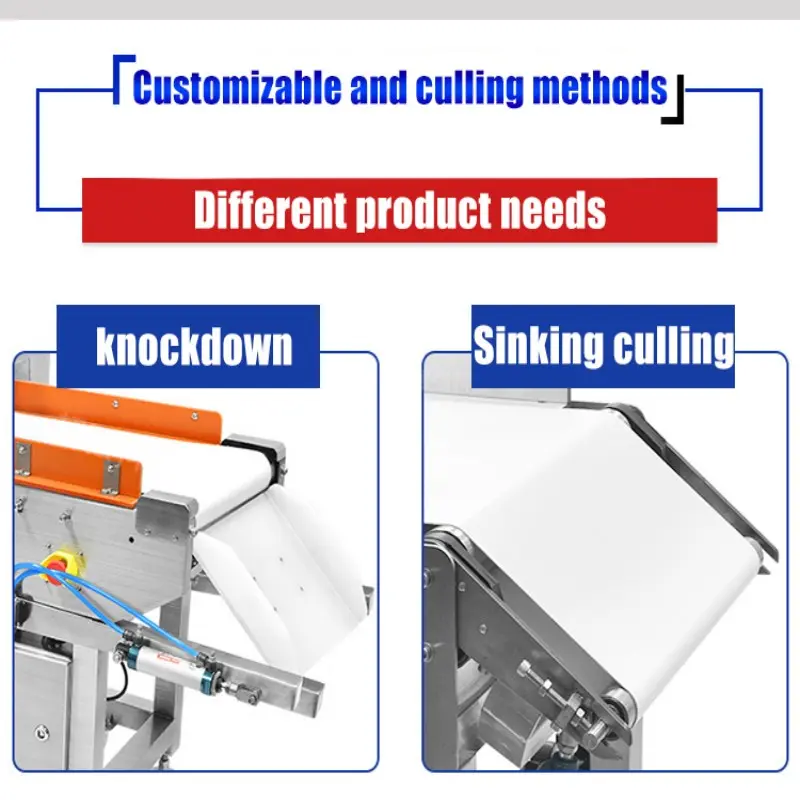

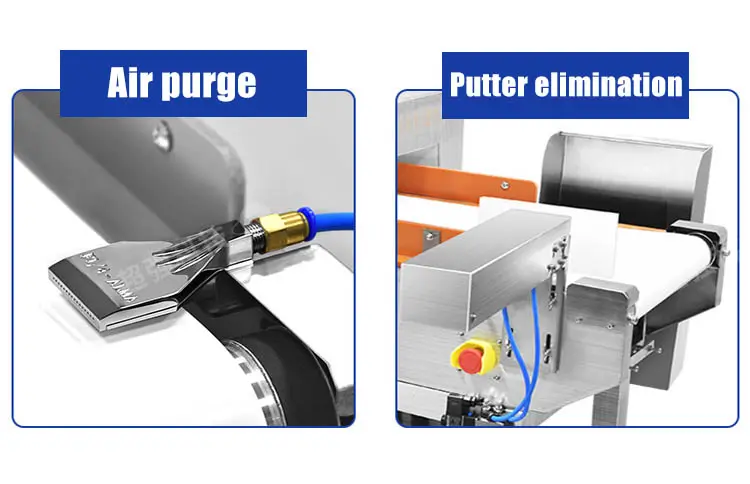

    Culling Mode Double putter or double swing arm
    Maximum Speed 120pcs/min
    Single Weighing Range ≤3000g
    Weighing Accuracy Range ±0.5g-±1g
    Conveyor Speed 20-90m/min
    Working environment Temperature: 0℃~40℃,Humidity:30%~95%
    Air pressure interface Φ8mm
    External air source 0.6-1Mpa
    Operation direction Facing the machine, left to right

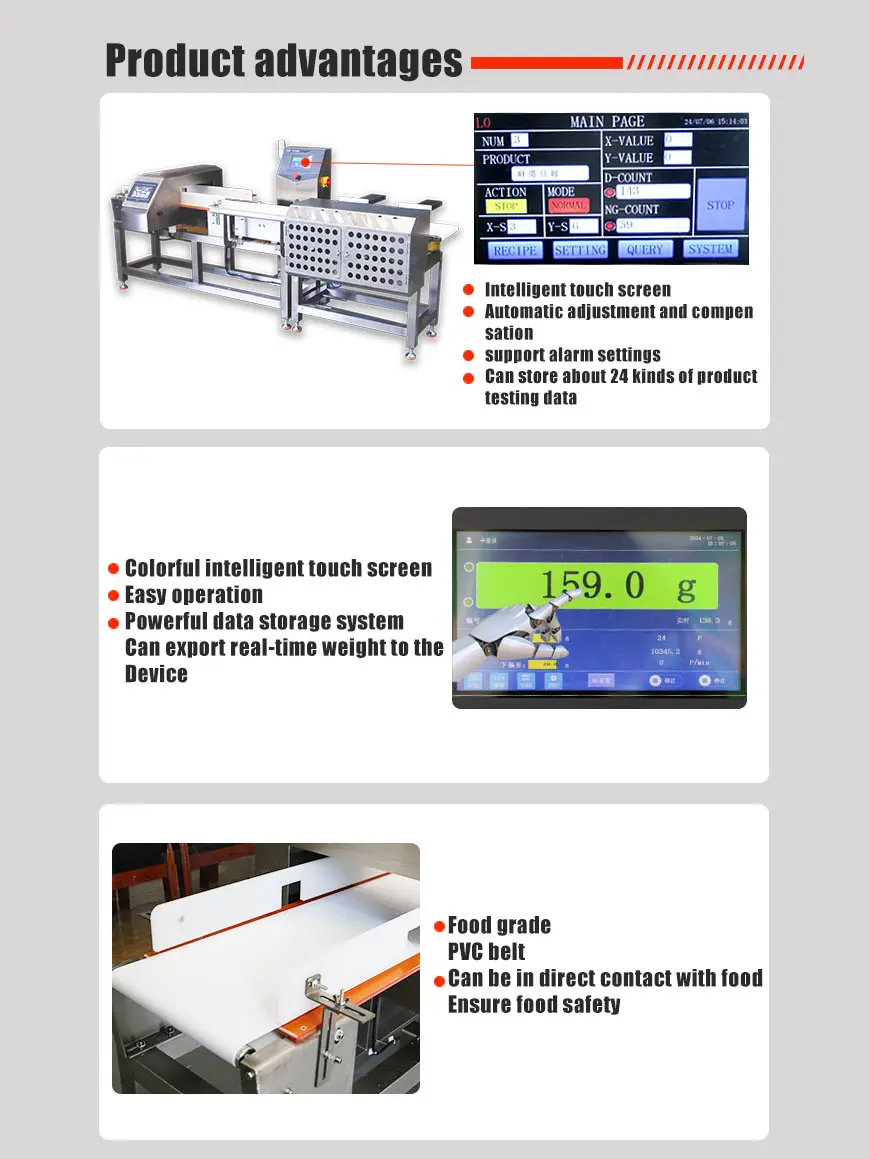

    Display type Touch Screen
