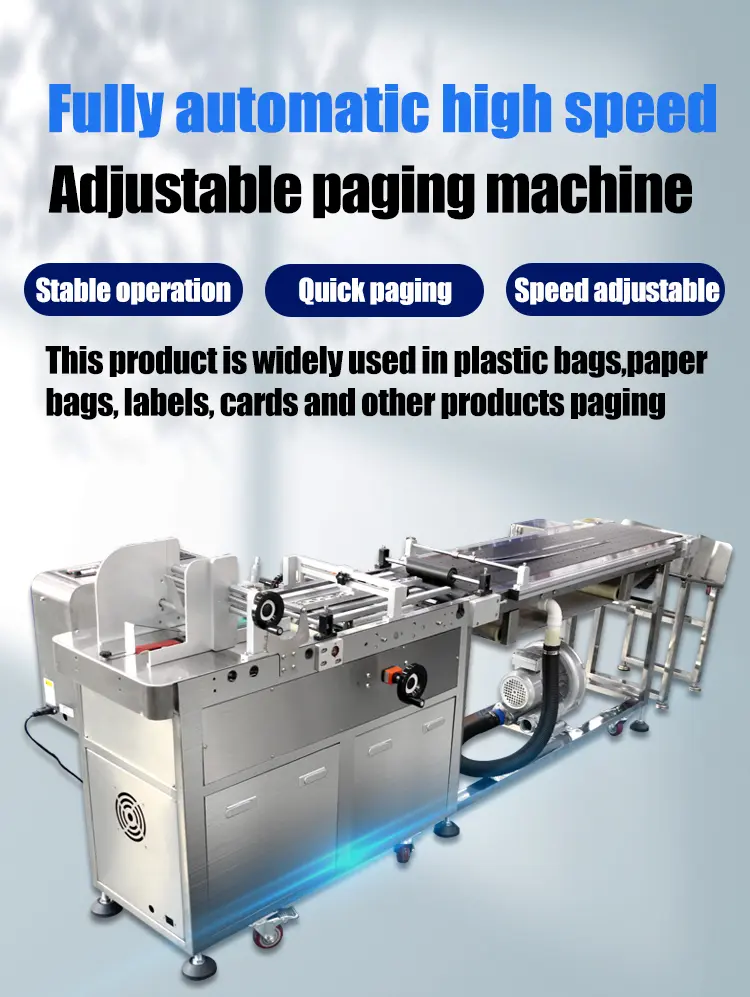

Beiheng Automatic Card Paper Pouch Bag Film Foil Conveyor Separating Page Machine
Working Principle
When the paging machine is started, the shaft and friction wheel begin to rotate synchronously. The items to be paged (e.g. paper, cards, bags, etc.) are placed in the hopper. As the machine runs, the items from the feed hopper enter the gap between the wheel shaft and the friction wheel. The friction between the friction wheel and the item causes the bottom item to stick to the friction wheel and be transferred to the next wheel axle as the friction wheel rotates. In this process, the difference in speed separates the articles one by one, creating the paging effect.
Video
Applications
1. Packaging industry:
In the packaging process, the Friction Adsorption Paging Machine is often used to paginate stacks of bags, boxes, labels, cards, and other items for subsequent operations such as coding, labeling, and sealing.
2. Printing Industry:
For printed paper, business cards, brochures, etc., the pager can page and transport to cutting, binding or packaging equipment.
3. Pharmaceutical Industry:
In the process of pharmaceutical packaging, the paging machine is used to paginate the medicine box, instruction manual, etc. to carry out the process of spraying code, labeling, etc. to ensure the accuracy and traceability of drug information.
4. Food industry:
Food packaging in plastic bags, aluminum foil bags, cartons, etc., can also use the paging machine for paging to carry out coding, sealing and other subsequent operations.
5. Electronics and Consumer Goods Industry:
Boxes and manuals of electronic products as well as daily necessities such as maps, telephone cards, IC cards, IP cards, etc. can be paged with a pager.
-
Working Principle-ae
-
Working Principle-ba
Applicable Product Types

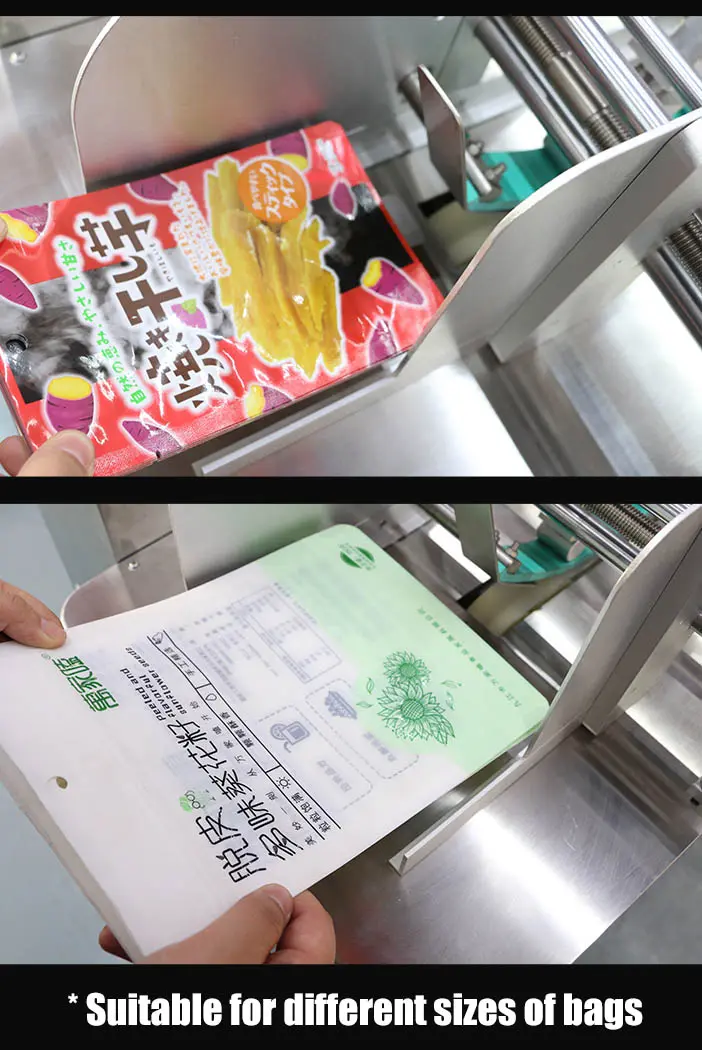

1. Packaging bags:
Including plastic bags, aluminum foil bags, composite bags, etc., these bags are usually used for packaging food, medicine, daily necessities and other products.
2. Packaging boxes:
Such as medicine boxes, cosmetic boxes, food boxes, etc. These boxes need to be paginated for subsequent operations such as coding and labeling.
3. Labels and cards:
Including labels made of various materials (such as paper labels, plastic labels, etc.) and cards (such as business cards, telephone cards, IC cards, etc.) These items need to be paginated for subsequent operations such as coding, printing, or cutting.
4. Paper and printed materials:
Such as brochures, manuals, newspapers, etc. These printed items need to be paginated for subsequent operations such as binding, cutting or distribution.
5. Other sheets:
Such as plastic sheets, metal sheets, paper sheets, etc.

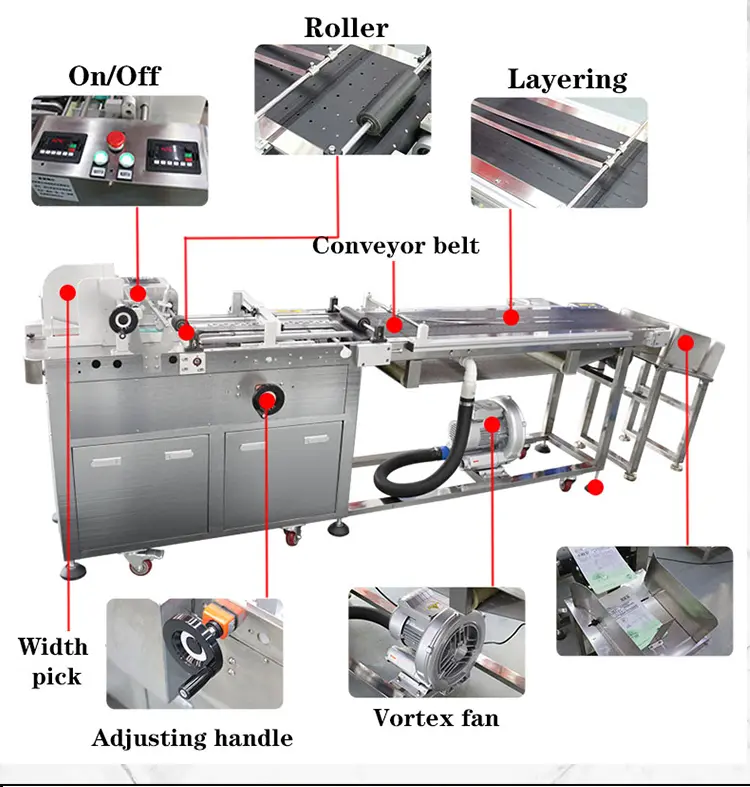

Product Parameters

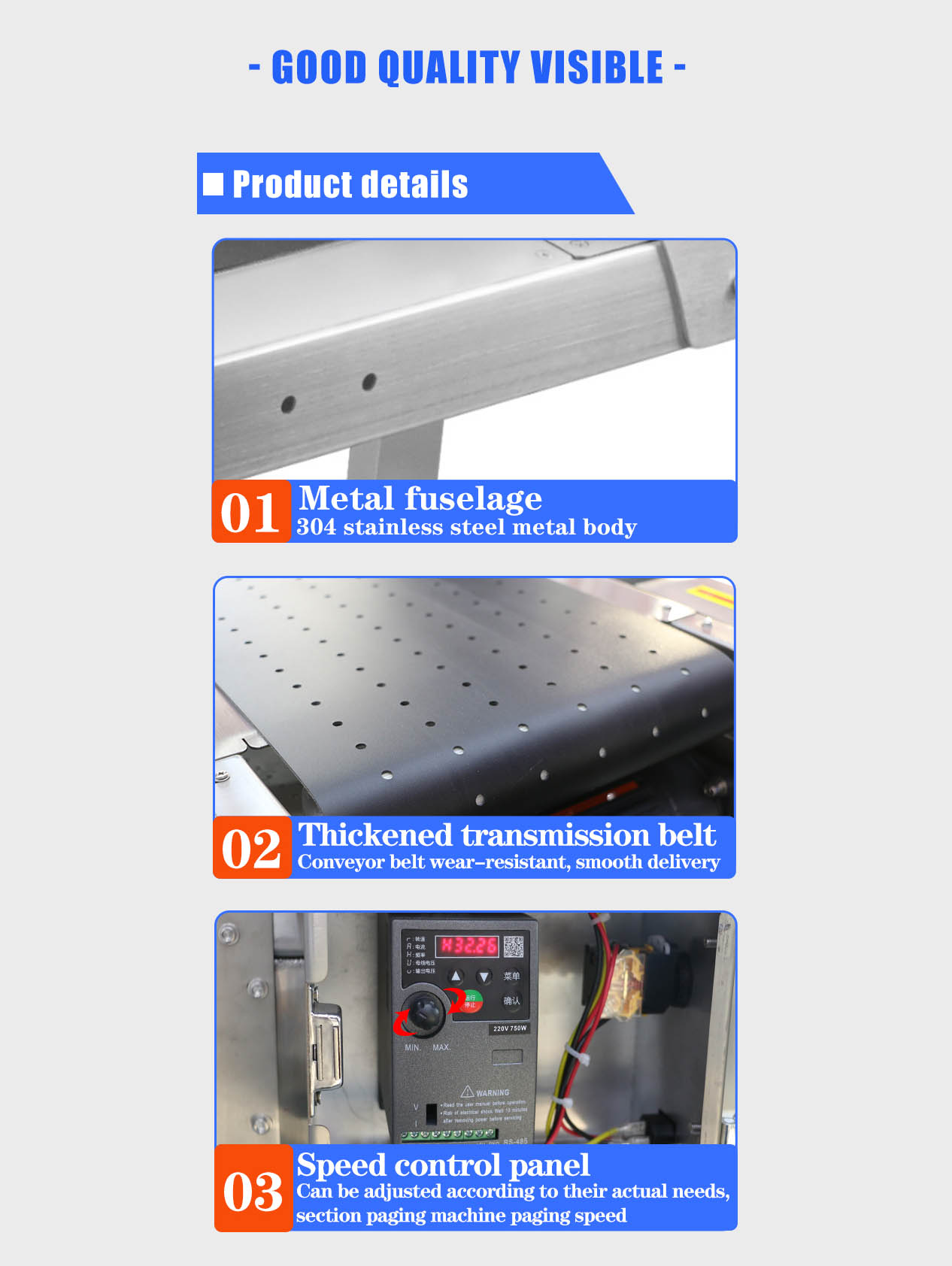

Material | 304 stainless steel fabrication |
Total Length | 2500mm (including the black belt conveyor part 1500mm, the length of the corrective 500mm) |
Belt surface height from the ground | 750mm |
Belt width | 300mm, using 2mm black PVC belt |
Motor power | 200W |
Speed mode | Frequency conversion speed control (dual frequency dual motor independent control) |
Conveying speed | 0-50 meters / min (adjustable) (stable speed 30-50 meters / min) |
Rated voltage | 220V/50Hz |

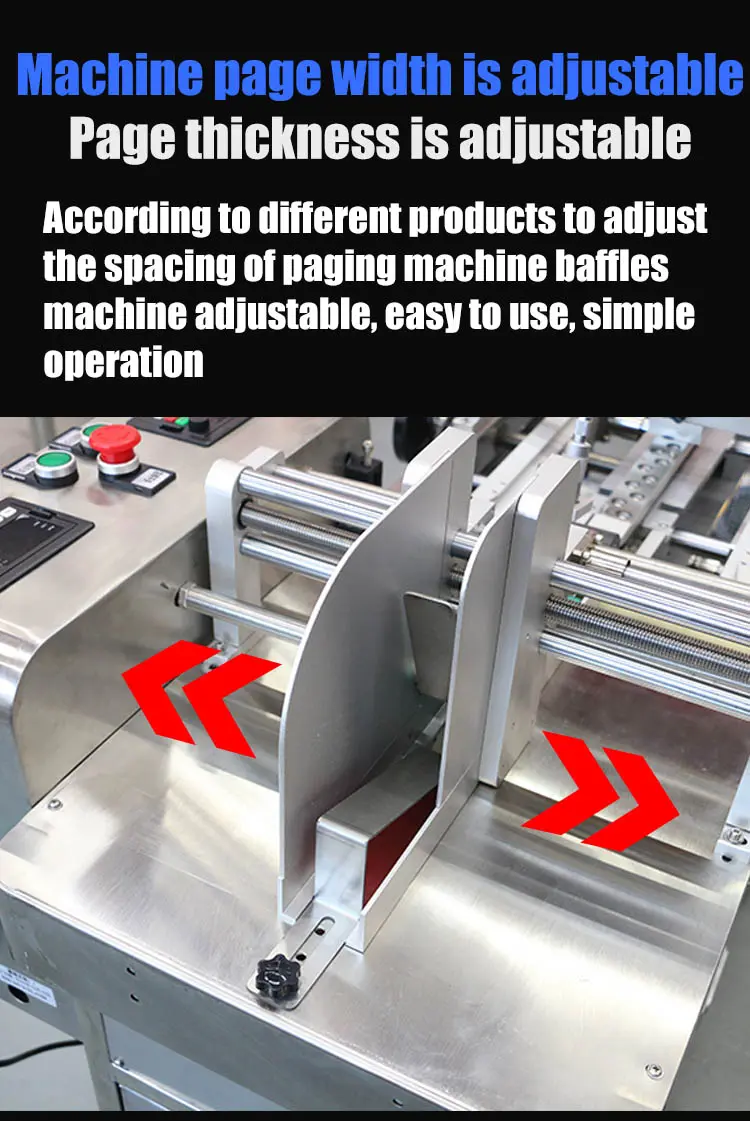

Conveyor effective width | 30-300mm wide adjustable |
Belt opening with adsorption,With gantry press bar | |
With collecting hopper,Hopper height 200mm | |
With 500mm length of pulling rule to correct the deviation |
-
